Beschrijving

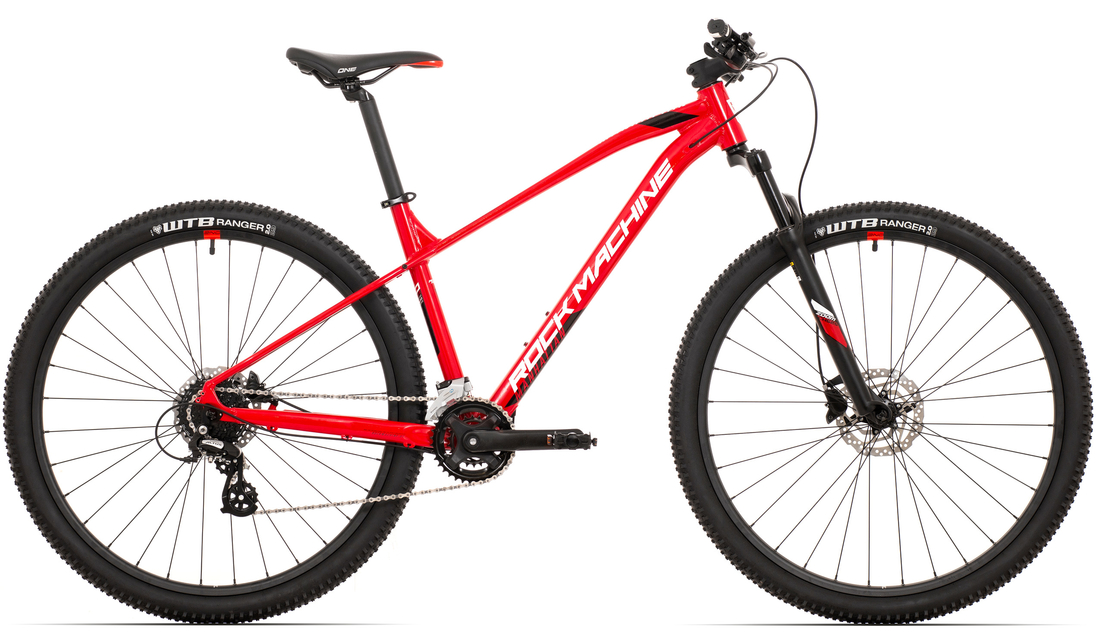

Rock Machine Manhattan 70-29 Gloss Dark Red
De geometrie van deze favoriete aluminium 29” fiets is verbeterd, waardoor het comfort en de controle van dit betaalbare model zijn toegenomen. Dankzij de Shimano Altus 2×8 versnellingsset is de fiets eenvoudig te bedienen, de verende voorvork zorgt voor comfort en de universele WTB-banden helpen je op elk soort ondergrond, van glad asfalt tot stenige offroad-trails.
- Frame van de NIEUWE generatie met Fun Ride-geometrie voor maximaal comfort en controle op en naast de weg
- SHIMANO ALTUS 2×8 36-22 x 12-32
- SHIMANO schijfremmen
- Stijg stuur en kortere stuurpen voor meer Comfort&Control
- Banden WTB Ranger Comp, 29×2.20″
Maten*
*voor de beste weergave kan je dit matentabel het beste op een groter scherm bekijken (tablet of groter).
Maatvoering in het onderstaande tabel is in inches.
| Frame Size | 13.5″ (XS) | 15.0″ (S) | 17.0″ (M) | 19.0″ (L) | 21.0″ (XL) | 23.0″ (XXL) |
|---|---|---|---|---|---|---|
| WHEELS SIZE | 13.5″ (XS): 29″ | 15.0″ (S): 29″ | 17.0″ (M): 29″ | 19.0″ (L): 29″ | 21.0″ (XL): 29″ | 23.0″ (XXL): 29″ |
| SEAT TUBE LENGTH (mm) | 13.5″ (XS): 356 | 15.0″ (S): 381 | 17.0″ (M): 438 | 19.0″ (L): 483 | 21.0″ (XL): 533 | 23.0″ (XXL): 584 |
| seat tube angle degree | 13.5″ (XS): 73 | 15.0″ (S): 73 | 17.0″ (M): 73 | 19.0″ (L): 73 | 21.0″ (XL): 73 | 23.0″ (XXL): 73 |
| EFFECTIVE TOP TUBE LENGTH (mm) | 13.5″ (XS): 560 | 15.0″ (S): 584 | 17.0″ (M): 602 | 19.0″ (L): 623 | 21.0″ (XL): 640 | 23.0″ (XXL): 655 |
| REAch (mm) | 13.5″ (XS): 386 | 15.0″ (S): 407 | 17.0″ (M): 419 | 19.0″ (L): 434 | 21.0″ (XL): 442 | 23.0″ (XXL): 455 |
| STACK HEIGHT (MM) | 13.5″ (XS): 570 | 15.0″ (S): 602 | 17.0″ (M): 609 | 19.0″ (L): 618 | 21.0″ (XL): 637 | 23.0″ (XXL): 637 |
| HEAD TUBE LENGTH (mm) | 13.5″ (XS): 90 | 15.0″ (S): 100 | 17.0″ (M): 110 | 19.0″ (L): 120 | 21.0″ (XL): 140 | 23.0″ (XXL): 140 |
| head tube angle degree | 13.5″ (XS): 69 | 15.0″ (S): 69 | 17.0″ (M): 69 | 19.0″ (L): 69 | 21.0″ (XL): 69 | 23.0″ (XXL): 69 |
| CHAINSTAY LENGTH (mm) | 13.5″ (XS): 450 | 15.0″ (S): 450 | 17.0″ (M): 450 | 19.0″ (L): 450 | 21.0″ (XL): 450 | 23.0″ (XXL): 450 |
| bb drop (mm) | 13.5″ (XS): 55 | 15.0″ (S): 55 | 17.0″ (M): 55 | 19.0″ (L): 55 | 21.0″ (XL): 55 | 23.0″ (XXL): 55 |
| WHEELBASE (mm) | 13.5″ (XS): 1078 | 15.0″ (S): 1106 | 17.0″ (M): 1126 | 19.0″ (L): 1145 | 21.0″ (XL): 1161 | 23.0″ (XXL): 1173 |
| Handlebar Width (mm) | 13.5″ (XS): 680 – R25 | 15.0″ (S): 680 – R25 | 17.0″ (M): 700 – R25 | 19.0″ (L): 700 – R25 | 21.0″ (XL): 700 – R25 | 23.0″ (XXL): 700 – R25 |
| Stem Length (mm) | 13.5″ (XS): 45 | 15.0″ (S): 45 | 17.0″ (M): 60 | 19.0″ (L): 60 | 21.0″ (XL): 60 | 23.0″ (XXL): 60 |
| Crank Length (mm) | 13.5″ (XS): 170 | 15.0″ (S): 170 | 17.0″ (M): 170 | 19.0″ (L): 175 | 21.0″ (XL): 175 | 23.0″ (XXL): 175 |
| seat post lenght/travel (mm) | 13.5″ (XS): 350 | 15.0″ (S): 350 | 17.0″ (M): 350 | 19.0″ (L): 350 | 21.0″ (XL): 350 | 23.0″ (XXL): 350 |
Specificaties
- COLOUR Gloss Dark Red/Black/White
- FRAME Alloy Al-6061 T6 Custom tubing, Fun Ride Geometry, Shark Spine EVO2 29er, BB BSA 73mm, OLD 135×9, Disc Brake Post Mount, Fender&Kickstand Ready Dropout, Replaceable RD Hanger, Inner Cable Routing
- HEAD SET FSA No.10 Semi-Cartrige, 1-1/8“
- FORK ZOOM 525S AMS, 1-1/8″, Coil, QR Type, 100mm travel
- SIZES 13.5″(XS), 15.0″(S), 17.0″(M), 19.0″(L), 21.0″(XL), 23.0″(XXL)
DRIVETRAIN
- GEARS 2×8
- SHIFTER SHIMANO SL-M315-2L RapidFire Plus, 2-speed, SHIMANO SL-M315-8R RapidFire Plus, 8-speed
- FRONT DERAILLEUR SHIMANO FD-M315-TS, TOP SWING, DUAL-PULL
- REAR DERAILLEUR SHIMANO RD-M310
- CRANKSET SAMOX SAC38731SS, 36-22T
- CASSETE SHIMANO CS-HG200-8, 12-32T
- BOTTOM BRACKET SHIMANO BB-UN101 122.5mm, BSA, shell 73mm
- CHAIN KMC Z8.3
- PEDALS Marwi SP-610
COMPONENTS
- HANDLEBAR ONE1 Alloy, MTB AL-325BT, 6° upsweep, 9° backsweep, 25mm rise, 700mm, 31.8mm
- STEM ONE1 TDS-C342 Alloy, 31.8xE60mm, +3°
- GRIPS ONE1 VL-G1325D2
- BRAKES SHIMANO BL-MT200/BR-MT200, 160/160 rotor, hydraulic disc brake
- SADDLE ONE1 XC
- SEAT POST ONE1 Sport Alloy, SP C207, 30.9x350mm
WHEELS
- FRONT HUB SHIMANO TX HB-TX505, 32H, CENTER LOCK, QR Type
- REAR HUB SHIMANO TX FH-TX505-8, 32H, CENTER LOCK, M10x135mm, QR Type
- RIMS Stars J20S, 32H
- TIRES WTB Ranger Comp, 29×2.00″
- SPOKES Sapim Galvanized Black
WEIGHT
- TOTAL WEIGHT *14.7 Kg (M size)
Beoordelingen
Er zijn nog geen beoordelingen.
